Ultra slim step-shape 3SU DIN Rail Power Supply • Industrial-grade with OVC III EN61558-1 safety standard • Universal 85-264VAC or 120-370VDC input voltage • Accepts AC or DC input (dual-use of same terminal) • Short circuit, over-current and over-voltage protection • Low standby power consumption, high efficiency • DC output voltage adjustable between 13.5 and 18VDC • Large operating ambient temperature range: -40? to +70? • High I/O isolation test voltage up to 4000VAC • Low ripple & noise • Withstand 300VAC surge input for 5s • DIN rail TS35X7.5/ TS35X15 mountable • LED indicador de ligadoOutput Specifications: •• Output power: 60W •• Nominal Output Voltage (Vo): 15V •• Nominal Output Current (Io): 4A •• Output Voltage Adjustable Range ADJ: 13.5V -18.0V •• Max Capacitive Load: 8000 µF •• Output Voltage Accuracy (0%-100% load): 2% •• Line Regulation (rated load): 0,5% •• Load Regulation (230VAC): 1,5% •• Output Ripple & Noise (20MHz bandwidth peak-to-peak value): 120mV •• Temperature Coefficient: 0,02 %/°C •• Stand-by Power Consumption with 230VAC input: 0,3W •• Short Circuit Protection: Hiccup, continuous, self-recovery •• Over-current Protection: bigger or equal to 120%lo, self-recovery •• Over-voltage Protection: less or equal to 20V (output voltage clamp or hiccup) •• Minimum Load: 0% •• Start-up Delay Time: 3s •• Hold-up Time: 15ms @ 115VAC - 80ms @ 230VAC •• Power Derating: 8.0%/°C (-40°C to -30°C), 2.0%/°C (+45°C to +70°C), 1.0%+VAC (85VAC-100VAC) • Input Specifications: •• AC Input Voltage Range: 85-264VAC •• DC Input Voltage Range: 120-370VAC •• Input Frequency range: 47-63 Hz •• Efficiency at 230VAC Typ.: 89% •• Max Input Current: 1.2A @ 115VAC, 0.8A @ 230VAC •• Typical Inrush Current: 30A @ 115VAC, 60A @ 230VAC •• Max Leakage Current at 264VAC: 0.25mA RMS • Environmental specifications: •• Operating Temperature range: -40°C, +70°C •• Storage Temperature range: -40°C, +85°C •• Max. Storage Humidity: 95 %RH •• Max. Operating Altitude: 2000 m • segurança & EMC: •• Safety Standard: CAT III rating (EN 61558-1) •• MTBF (MIL-HDBK-217F@25°C): >300.000h •• Isolation Input-output Electric strength test for 1min. (leakage current <5mA): 4000 VAC •• Electromagnetic Compatibility (EMC): CE approved • Mechanical Specifications: •• Case Material: Plastic, heat-resistant (UL94V-0) •• Package Dimensions: 92.66 x 52.00 x 58.00 mm (h x w x d) •• Weight: 175g (Typ.) •• Cooling Method: Free air convection •• Wire range: 24-12 AWG •• Tightening torque: Max 0.4 Nm •• Mounting rail: TS35

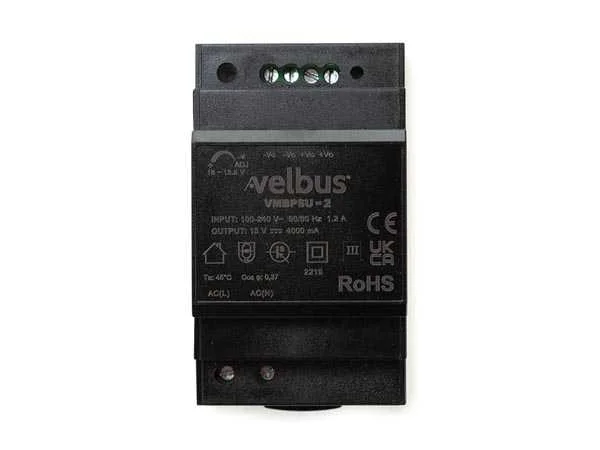

Fonte de Alimentaçáo Velbus Din Rail - 15vdc - 4 a
