Evolving from the popular Mod Core Deluxe pedal, this mkII version has new effect models, signal routing options and editing features. A choice of 8 modulation models range from chorus to phasing and vibrato, with Rate and Depth controls and an additional Tweak control to adjust a third parameter specific to each effect and a further Blend adjustment in Alt mode. Rate can also be adjusted using a Tap Tempo function of the main footswitch. Mod Core Deluxe mkII has routing options for mono out, stereo out or mono with send/return loop. When using the loop, there are 3 routing options for pre, parallel and post effect placement. If you have space for just one mod effect on your board, the Mod Core Deluxe mkII offers a choice of 8 high quality pedals in a single compact stomp box format.Power supply: 9Vdc (PP3) battery or optional power adaptorvbCrLfDC input connection: DC5521 jack (for optional adaptor - pin-negative)vbCrLfCurrent consumption: <120mAvbCrLfControls: Rate, Depth, Tweak & Mod typevbCrLfModes: ST.CH, CE-1, SCF CHO, SCF FLG, SCF PM, U-VIBE CHO, U-VIBE VIB, PH-100vbCrLfInputs: Instrument in & Loop return (6.3mm mono jack)vbCrLfOutputs: Out1 & Out2/Loop send (6.3mm mono jack)vbCrLfTempo range: 50-200 bpmvbCrLfSampling format: 48kHz, 24-bitvbCrLfInput impedance: 1M ohmvbCrLfOutput impedance: 1k ohmvbCrLfDynamic range: 104dBvbCrLfDimensions: 122 x 72 x 47mmvbCrLfWeight: 270g

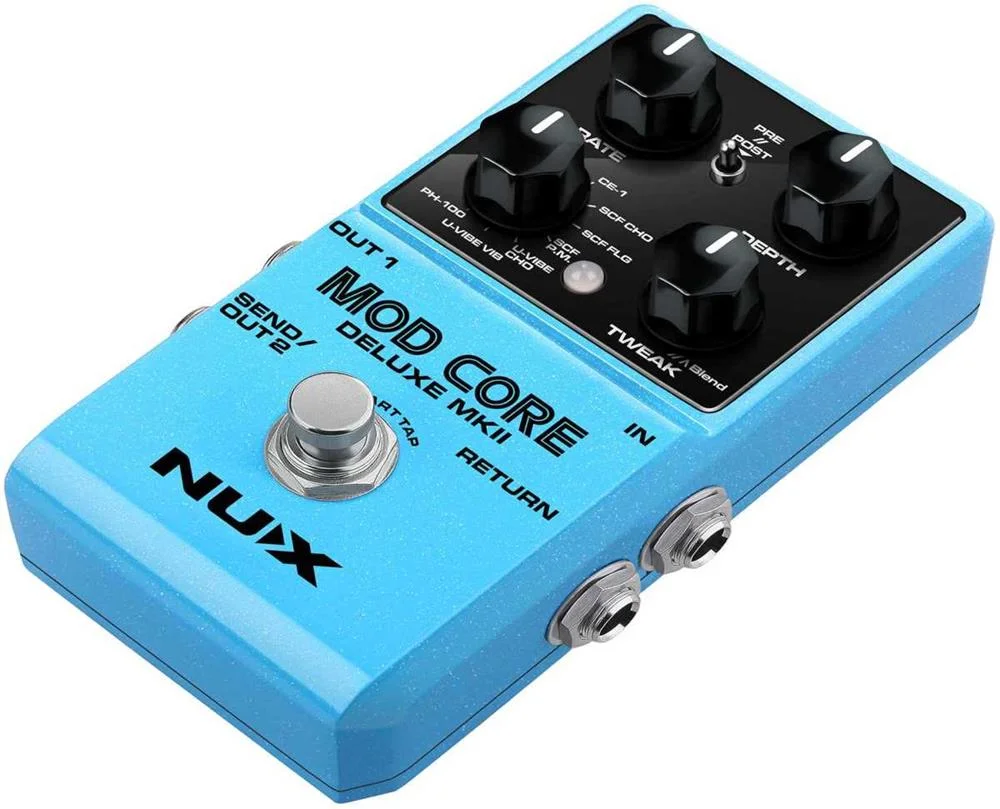

Pedal Mod Core Deluxe Mkii
